Expanded PTFE Products
Expanded PTFE is a sealing agent that is made of 100-percent pure PTFE. The expansion process produces a microporous fibrous structure which gives the product its unique mechanical properties. The material is specially targeted for sealing flange joints in pipelines and hydraulic and pneumatic systems. In addition, expanded PTFE is a perfect sealant for sealing glass and plastic flanges and pressure vessels.
ePTFE Gasket Sheet is a form of PTFE which is expanded and stretched in many different directions during the manufacturing process. This ‘multi-directional’, higher strength material demonstrates a reduced tendency to creep under load at elevated temperatures when compared with other PTFE gasket materials.
- Technical Data - Service Capability
- Size : 0.5, 0.8, 1.0, 1.5, 2.0, 3.0, 4.0, 5.0, 6.0, 8.0, 9.0 (mm)
- Temprature : Minimum : - 200 ºC , Maximum : + 260 ºC
- pH : 0 - 14
- Pressure resistance : vacuum up to 200 bar

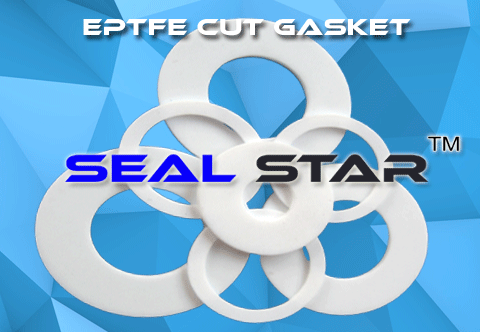

ePTFE Cut Gasket have Excellent resistance as solid PTFE, it’s UV resistance, non aging and non toxic. it can work at temperature up to 260 ºC. ePTFE gaskets is soft flexible gasket and sealing material easily conforms to sealing surface imperfections with less torque than conventional materials. ePTFE resists cold flow and creep while offering the widest range of sealibility, chemical resistance, and temperature service of any material offered.
- Technical Data - Service Capability
- Size : 0.5, 0.8, 1.0, 1.5, 2.0, 3.0, 4.0, 5.0, 6.0, 8.0, 9.0 (mm)
- Temprature : Minimum : - 200 ºC , Maximum : + 260 ºC
- pH : 0 - 14
- Pressure resistance : vacuum up to 200 bar
ePTFE Sealing Tape have Excellent resistance as solid PTFE, it’s UV resistance, non aging and non toxic. it can work at temperature up to 260ºC. ePTFE Sealing tape is idea sealing for pipe fitting and flanges. It comes with qn adhesive strip on back side.
- Technical Data - Service Capability
- Size : 1.5, 2.0, 3.0, 4.0 (mm)
- Temprature : Minimum : - 200 ºC , Maximum : + 260 ºC
- pH : 0 - 14
- Pressure resistance : vacuum up to 200 bar
ePTFE Gland Packing Manufactured from 100 % pure PTFE multifilament yarns with intensive PTFE dispersion and high temperature resistant inert lubricant. This chemically inert & wear resistance packing is preferred choice of the chemical industries and industries in general for pumps, agitators, mixers, filters and valves.
- Technical Data - Service Capability
- Size : 3.0 to 25.0 (mm)
- Temprature : Minimum : - 200 ºC , Maximum : + 260 ºC
- pH : 0 - 14
- Pressure resistance : vacuum up to 200 bar

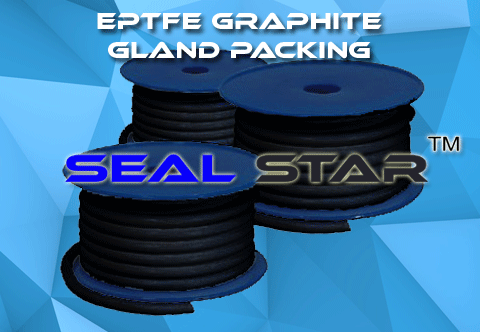

ePTFE Graphite Gland Packing Premium grade graphite fibers with heat resistance graphite lubricant packing developed for use in extreme conditions of temperature, pressure and corrosion. This packing ensure minimum shaft and stem wear and performs well against high temperature steam, hot water, alkalis, chemicals,solvents.
- Technical Data - Service Capability
- Size : 3.0 to 25.0 (mm)
- Temprature : Minimum : - 200 ºC , Maximum : + 260 ºC
- pH : 0 - 14
- Pressure resistance : vacuum up to 200 bar

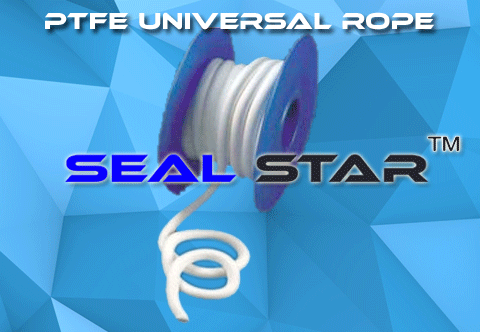

PTFE Universal Rope a specially formulated sealing material that withstands vibration, wide operating temperature range and has extremely low coefficient of friction. The friction free characteristic promotes smoother action and increases the life of the gasket many times over.
- Technical Data - Service Capability
- Size : 3.0 to 25.0 (mm)(Square/Round)
- Temprature : Minimum : - 200 ºC , Maximum : + 260 ºC
- pH : 0 - 14
- Pressure resistance : vacuum up to 200 bar
PTFE Universal Gland are made of pure PTFE yarn and is absolutely oil-free. These packing are easy to install and can be lessened to low levels. These packings can withstand friction and are resistant to corrosion & chemicals. .
- Technical Data - Service Capability
- Size : 3.0 to 25.0
- Temprature : Minimum : - 200 ºC , Maximum : + 260 ºC
- pH : 0 - 14
- Pressure resistance : vacuum up to 200 bar
